Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6

Brand Name : HUAWEI
Model Number : R4850N6
Certification : CE RoHS
Place of Origin : China
MOQ : 10 pcs
Price : negotiable
Payment Terms : L/C, T/T
Supply Ability : 1000 pcs per month
Delivery Time : within 10 days
Packaging Details : carton package
Power factor : >92%
Working temperature : -40℃~75℃
Input : ~100-240V; 50/60Hz; 17A
Output : DC 53.5V; 25.2-56.1A
Contact Now

Communication Base Station Telecom Power Supply Unit HUAWEI R4850N6


Overview


In response to the rapid development of the communication industry and site modernization, Huawei launched a series of simple, efficient, and intelligent power systems that integrate digital and big data technologies. Multiple models of embedded power products provide 30–400 A DC outputs and use rectifiers with an efficiency of up to 98%, and are highly applicable. The integrated field supervision unit (FSU) implements precise site management and intelligent control, including intelligent battery management and remote environment management.


Features


Intelligent monitoring, energy conservation and space-saving embedded power system

Supports a wide range of DC output from 120A to 400A

High rectifier efficiency up to 98% helps to save energy (derated output above 55°C)

Rectifier with MTBF > 500,000h helps to save OPEX

E-label function, achieving assets management of the whole site, easy for management of assets and location of quality issues

Battery anti-reversed connection function, avoids the possibility of equipment loss and personal accidents

Complete system management function, LCD visualization monitoring

Supporting multiple interfaces, convenient remote centralized management


Specifications


ItemETP48200-C5B4ETP48400-C9A2
Dimensions (W x D x H)482.6 mm x 330 mm x 222.5 mm482.6 mm x 330 mm x 400.5 mm
Weight≤ 20 kg (excluding rectifiers)≤ 30 kg (without rectifiers)
AC Input Mode220/380V three-phase; 220V single-phase220/380V three-phase
AC Input Frequency45 Hz to 66 Hz45 Hz to 66 Hz
AC Input Distribution1 x 63A/3P MCB1 x 100A/3P MCB
AC Output DistributionNA1 x 63A/3P, 3 x 32A/1P
Output Voltage Range-42V to -58V (expandable)-42V DC to -58V DC
Maximum Power Output12 kW24 kW
DC Output DistributionLLVD: 2 x 80A/1P, 3 x 32A/1P;BLVD: 1 x 63A/1P, 3 x 32A/1P, 1 x 16A/1P;Battery branches: 2 x 125A (fuse);LLVD: 2 x 80A/1P, 2 x 63A/1P, 6 x 32A/1P;BLVD: 2 x 63A/1P, 2 x 32A/1P, 2 x 16A/1P;Battery branches: 4 x 125A/1P
Operating Temperature-40°C to 65°C-40°C to 65°C
AltitudeZero to 4,000m (1ºC per 200m temperature derating from 3,000m to 4,000m)Zero to 4,000m (1ºC per 200m temperature derating from 3,000m to 4,000m)

Product Description

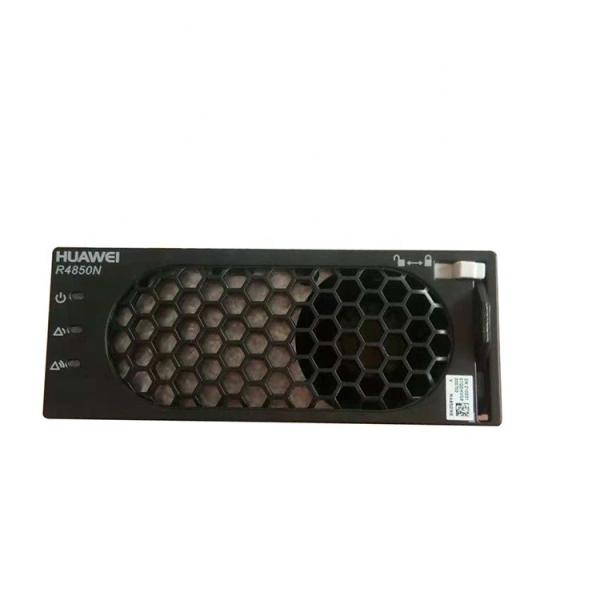

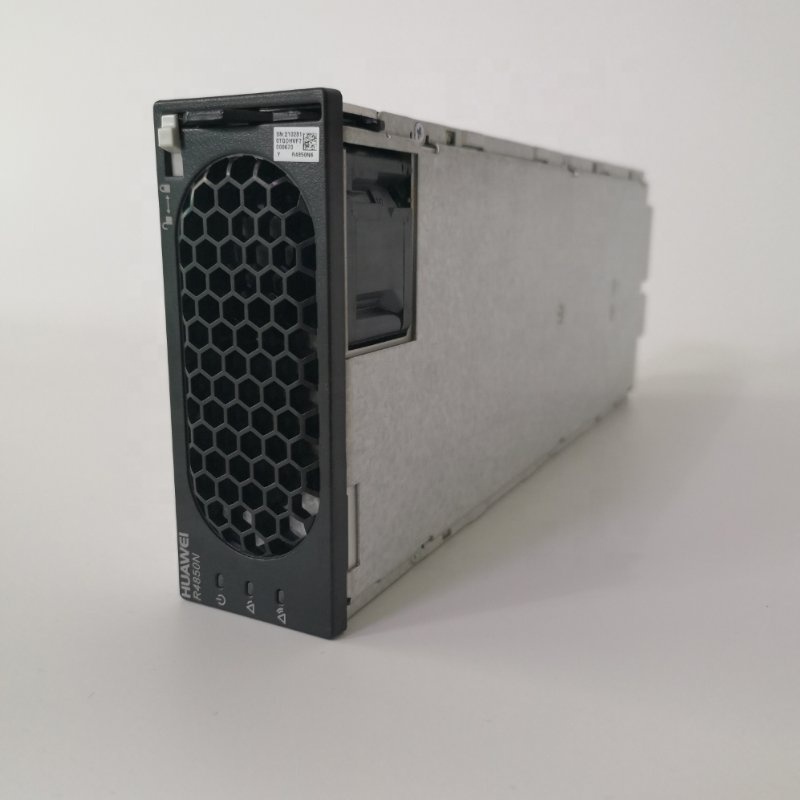

Huawei R4850N6 DC Rectifier Module Telecom Power Supply Unit

With advantage of features like compact size, easy to install, compatible with battery rack stacking and standard open rack, excellent function of BMS, intelligence dormancy and remote management, etc.


ProductHuawei Power Supply Module
ModelR4850N6
AC input~100-240V; 50-60Hz; 17A
DC output53.5V
DC Output25.2-56.1A
FunctionWith advantage of features like compact size, easy to install, compatible with battery rack stacking and standard open rack, excellent function of BMS, intelligence dormancy and remote management, etc.

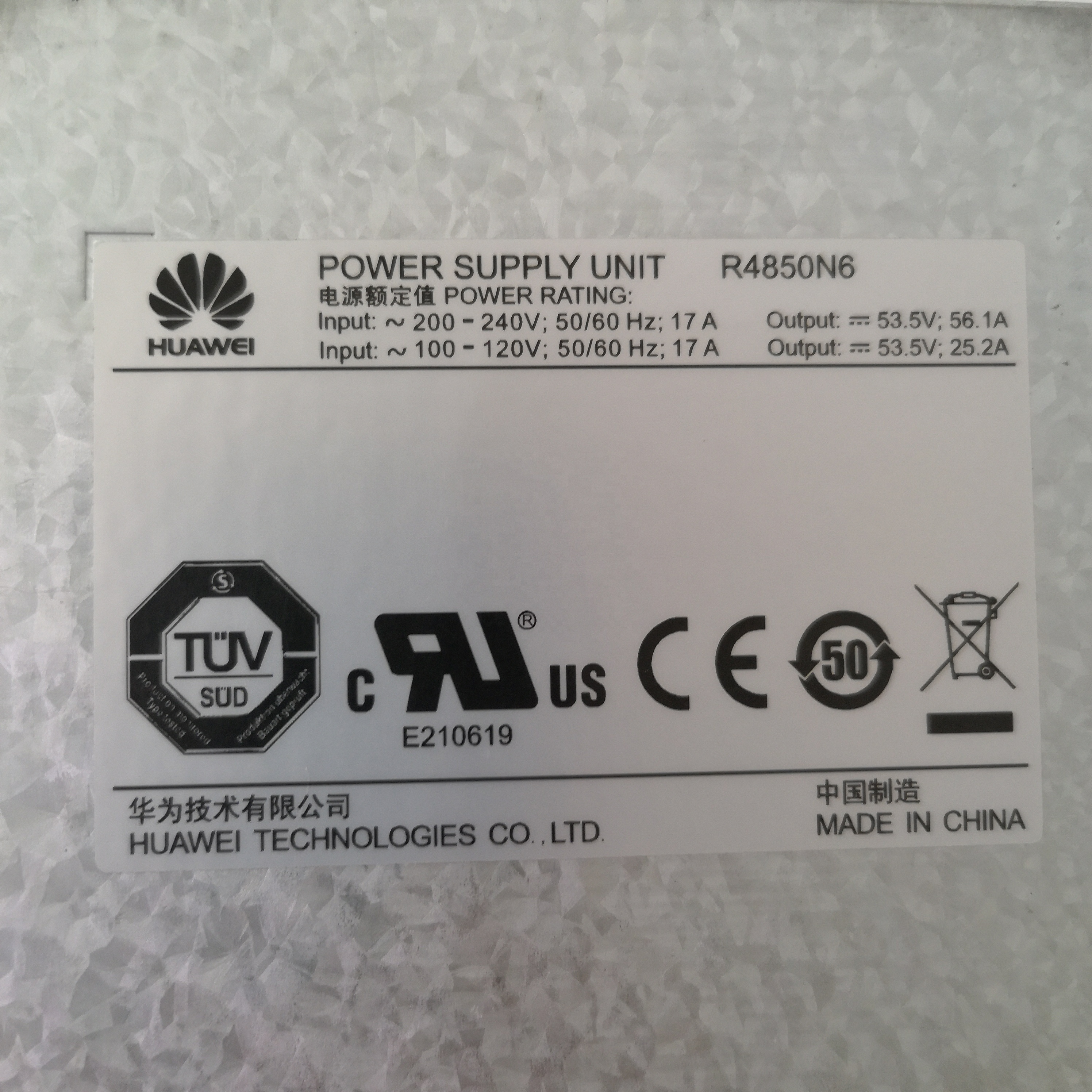

Brief Specifications


Brand NameHUAWEI
Model NumberR4850N6
Input~100-240V; 50/60Hz; 17A
OutputDC 53.5V; 25.2-56.1A
Power factor>92%
Working temperature: -40℃~75℃
