Gel Free Fiber Patch Cables , Durable Multimode OM2 Fiber Cable For Outdoor

Wuhan Unique Mechanical And Electrical Equipment Co.,LTD.

Gel Free Fiber Patch Cables , Durable Multimode OM2 Fiber Cable For Outdoor

Brand Name : Unique-Tel

Model Number : NWGL06

Certification : RoHS

Place of Origin : China

MOQ : 1000 Meters

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 10000 Meters/Month

Delivery Time : 5 work days

Packaging Details : fiber optic reel

Fiber Type : Multimode

Category : OM2

Cable Type : Loose Tube

Application : Aerial, Duct

Environment : Outdoor

Wavelengths : 850 nm / 1300 nm

EMB Bandwidth : 950 MHz*km / -

OFL Bandwidth : 700 MHz*km / 500 MHz*km

Contact Now

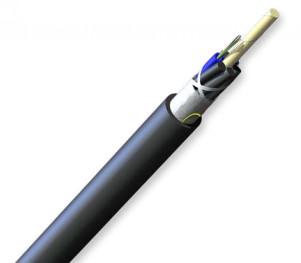

6 Fiber Optic Cable Loose Tube Gel Free Durable Multimode OM2 Outdoor

Overview

Unique-Tel Cable Systems All-Dielectric Gel-Free Cables are designed for outdoor and limited indoor use for campus backbones in lashed aerial and duct installations. The loose tube gel-free design is fully waterblocked using craft-friendly, water-swellable materials, which means cable access is simple and no clean up is re- quired. The flexible craft-friendly buffer tubes are easy to route in closures and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy midspan access. The all-dielectric cable construction requires no bonding or grounding and these cables have a medium-density polyethylene jacket that is rugged, durable and easy to strip.

Features

Gel-free waterblocking technology
Craft-friendly cable preparation

Medium-density polyethylene jacket
Rugged, durable and easy to strip while providing supe- rior protection against UV radiation, fungus, abrasion and other environmental factors

All-dielectric construction

Requires no grounding or bonding

6-F 50/125 LT DUCT/AERIAL 3.0/1.0 DB/KM 700/500 MHZ*KM ALTOS PRET150 CLRCRV

ALTOS Loose Tube, Gel-Free Cable, 6 F, 50m multimode (OM2)

Gel-free waterblocking technology; Craft-friendly cable preparation

medium-density polyethylene jacket; Rugged, durable and easy to strip while providing superior protection against UV radiation, fungus, abrasion and other environmental factors

All-dielectric construction; Requires no grounding or bonding

Unique-Tel Cable Systems ALTOS All-Dielectric Gel-Free Cables are designed for outdoor and limited indoor use for campus backbones in lashed, aerial and duct installations.

The loose tube gel-free design is fully waterblocked using craft-friendly, water-swellable materials, which means cable access is simple and no clean up is required.

The flexible craft-friendly buffer tubes are easy to route in closures and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy midspan access.

The all-dielectric cable construction requires no bonding or grounding and these cables have a medium-density polyethylene jacket that is rugged, durable and easy to strip.

Specifications

Optical Characteristics (cabled)
Fiber Core Diameter 50 µm
Fiber Type Multimode
Fiber Category OM2
Wavelengths 850 nm / 1300 nm
Maximum Attenuation 3.0 dB/km / 1.0 dB/km
Min. Overfilled Launch (OFL) Bandwidth 700 MHz*km / 500 MHz*km
Minimum Effective Modal Bandwidth (EMB) 950 MHz*km / -
Serial 1 Gigabit Ethernet 750 m / 600 m
Serial 10 Gigabit Ethernet 150 m / -

General Specifications
Environment Outdoor
Application Aerial, Duct
Cable Type Loose Tube
Product Type Dielectric
Fiber Category 50 µm MM (OM2)

Temperature Range
Storage -40 °C to 70 °C (-40 °F to 158 °F)
Installation -30 °C to 70 °C (-22 °F to 158 °F)
Operation -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element Dielectric
Fiber Count 6
Fiber Coloring Blue, Orange, Green, Brown, Slate, White
Fibers per Tube 6
Number of Tube Positions 6
Number of Active Tubes 1
Buffer Tube Color Coding Blue
Buffer Tube Diameter 2.5 mm (0.1 in)
Number of Filling Elements 5
Tape Water-swellable
Number of Ripcords 1
Outer Jacket Material Polyethylene (PE)
Outer Jacket Color Black

Mechanical Characteristics Cable
Max. Tensile Strengths, Short-Term 2700 N (600 lbf)
Max. Tensile Strengths, Long-Term 890 N (200 lbf)
Weight 73 kg/km (49 lb/1000 ft)
Nominal Outer Diameter 10.5 mm (0.41 in)
