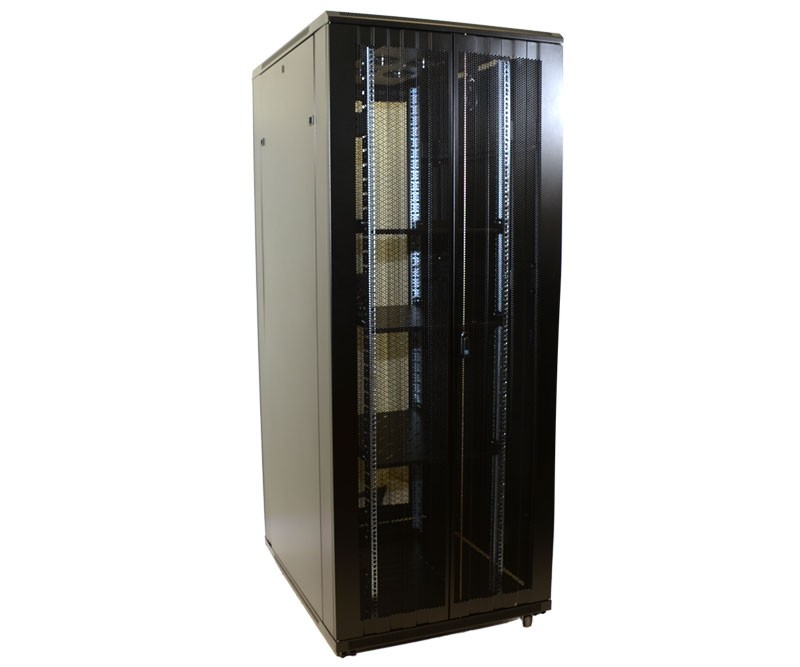

42U Segmented Architecture Data Center Entry Quiet Network Server Cabinet
Overview
Material:Cold rolled steel with powder coat finishing
19 inch standard floor Cabinet,available from 18U to 42U.
Lockable key type and reversible quick-release front and rear doors.
Front door with safety but toughened glass,easy to check the status inside of the cabinet without open the door.
Perforated steel rear door
Size: Wideth:600mm or 800mm.Depth:600mm or 800mm or 1000mm,800mm or 1000mm.
Packing:Whole pack or in Bulk
Detailed Info
1. Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree;
2. vented rear door door with hexagonal holes;
3. Removable side panels with latch,easy to install, optional lock;
4. Adjustable cable entry on the top and bottom;
5. Welded steel frame for front and back part, flat packing is available,easy to transfer;
6. Optional plinth to fix cabinet on floor;under base cable entry;
7. Unassembled packing,about 2/5 of original volume,save container space;
8. This cost-effective range of server cabinets is available in a combination of 600mm or 800mm widths with a 600mm,800mm or 1000mm depth. 9. All cabinets are available in 18U to 42U heights with either a glass or mesh front door.
10. Complied with Standards: ANSI/EIA RS-310-DIEC297-2DIN41494;PART1DIN41494;PART7, ETSI standard.
11. Thickness: Mounting Rail: 1.5/2.0mm,Frame of front door: 1.5mm; Others: 1.0 or1.2mm
Specification
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel
Thickness:mounting Profile:2.0mm,Others:1.2mm
Tempered glass Thickness:5mm |
| Loading Capacity | Static loading: 800kg(on the adjustable feet) |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 18U-47U |
| Width | 600mm,800mm |
| Depth | 600mm,800mm,900mm,1000mm,1200mm |
| color | Ral9004; Ral9005; Ral7035 |
Our Advantages
1. 100% Manufacturer.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate higher than 95%.
